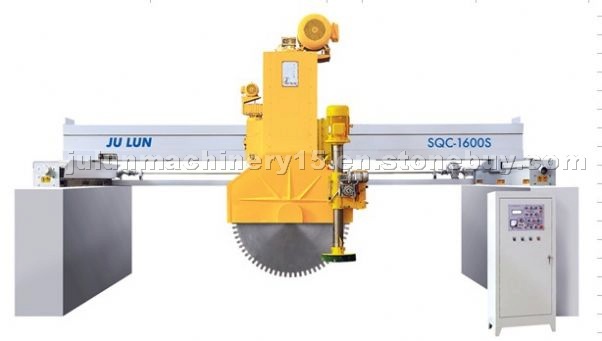

SQC-1600S Double Directions Cutting Machine

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1433163

• Place of Origin:

  China
• This machine has long span bridge structure. Moreover, the cross-beam and side-beams are made by excellent steel. The advanced imported parts are adopted in the electric control section that promise good quality and make this machine long life. The performance of multi-cutting and horizontal cutting are controlled by the central computer, which make sawing automatically and accurately. Moreover, the users can add the rotated worktable.
  DOUBLE DIRECTIONS CUTTING MACHINE
  Appellation unit TYPEA TYPEB
  Max.blade diametermm Φ1600/Φ1800/Φ2000
  Max.vertical strokemm 1350
  Max.vertical lengthmm 3500/3300/31004000/3800/3600
  Max.worktable widthmm 2300
  Saw blade diameter of horizontal cutting mmΦ400
  Max.vertical stroke of main column of horizonal cutting mm 900/1000/1100
  Main generator power of horizontal cutting kw 11
  Water consumptionm3/h 10
  Power of main motor(optional)kw 55
  Total power kw74.3
  (L×W×H) mm 6900×3800×4200 7800×3800×4200
  Total power kg 10000 10300
